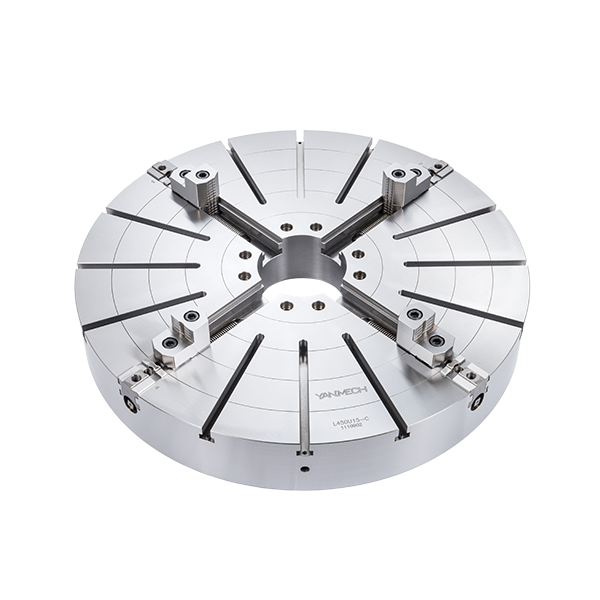

INDEPENDENT CHUCKS (L440U15)

INDEPENDENT CHUCKS

Features

Forged steel body.
Adapter Plates can be selected.
The jaw can be individually operated, and irregularly shaped workpieces can be clamped.
Special specifications can be customized.

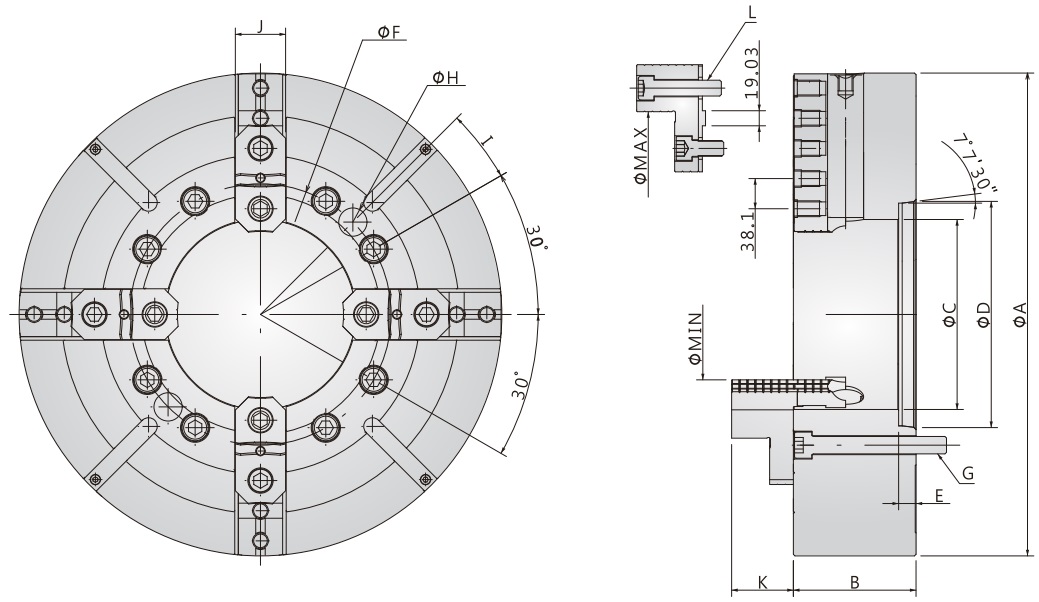

Model	A	B	C	D	E	F	G	H	I	J	K	L	Max Speed (r.p.m.)	Max Gripping Force (kgf)	Spindle Noses
L440U15-C-X1	1000	145	240	285.775	25	330.2	8-M22	35.7	15	56	89	M20	500	17500	A2-15
L440U20	1000	145	315	412.775	26	463.6	8-M24	42.1	15	56	89	M20	500	17500	A2-20

If the dimension and specifications change, please take the confirmation drawing as standard.
