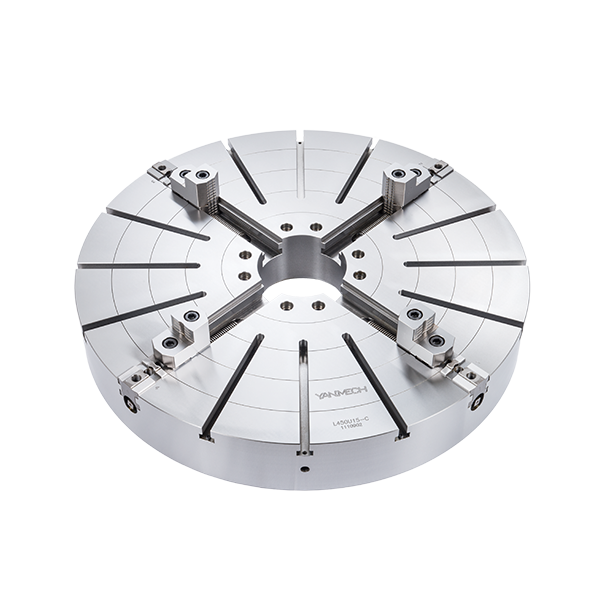

INDEPENDENT CHUCKS (L432U11)

INDEPENDENT CHUCKS

Features

Forged steel body.
Adapter Plates can be selected.
The jaw can be individually operated, and irregularly shaped workpieces can be clamped.
Special specifications can be customized.

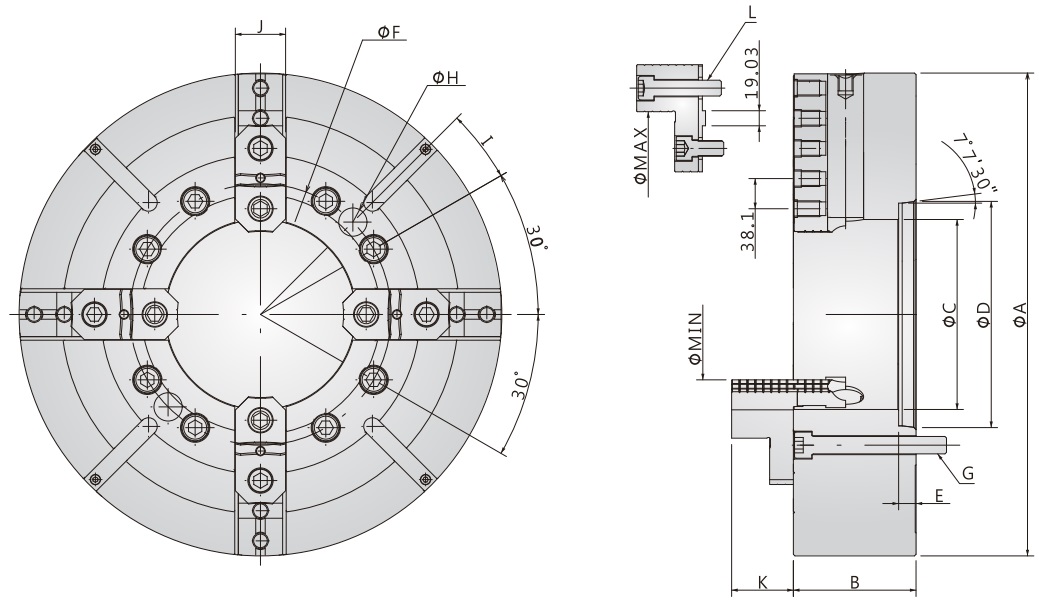

Model	A	B	C	D	E	F	G	H	I	J	K	L	Max Speed (r.p.m.)	Max Gripping Force (kgf)	Spindle Noses
L432U15-E	800	140	320	285.775	25	330.2	8-M24	35.7	15	56	89	M20	650	13500	A2-15
L432U20-A	800	140	371	412.775	26	463.6	8-M24	42.1	15	56	89	M20	650	13500	A2-20

If the dimension and specifications change, please take the confirmation drawing as standard.
